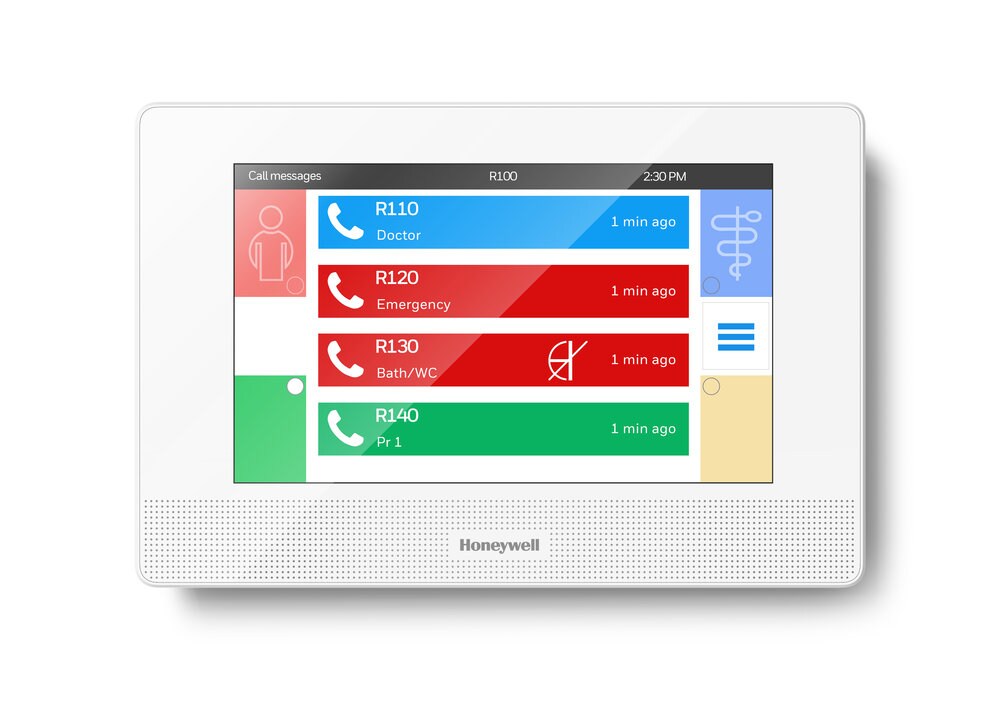

Systevo Touch IP, 7" Display

79CM307 | Systevo Touch IP, 7

IP-Terminal with 7" capacitive touch-display to support the daily care processes in care facilities. User-friendly operating interface to ensure runtime-critical and relevant data and process flows for user groups such as nursing staff, medical service as well as supporting personnel (including IT department, technical service). Reduction of movement times to optimize productivity and efficient information flow of nursing tasks. Use of RFID technology/PIN code for audit-proof authentication/time-accurate registration of processes and for access control in accordance with GDPR specifications, depending on the requirements in care facilities.

Designed as an IP communication unit for full-duplex operation, in a high-quality surface-mounting housing for residents'/patients' rooms/office rooms, as well as a control unit for additional functions in the respective room and as a gateway to mobile terminals. Intuitive operation via the backlit touch-display with high colour brilliance and good readability in different environmental parameters (brightness, distance). Intercom communication in hands-free intercom (full duplex) and announcement function (send/receive) via IP communication or bus technology as well as connection with VoIP/SIP interface (ETH, WIFI), for communication via the PBX. Optional extension with telephony client (SIP) for duty rooms and function rooms.

Display of system messages with set presence (alarms, calls and presences, etc.) with the highest priority in colour, prioritised order, including time / date. Acoustic call forwarding when set presence and possibility of triggering further calls. Option for configuring the after mode for switching off the display to fulfil the after rest for residents/patients. Support of workflow-relevant processes through display as well as selecting/de-selecting of services (zone concentrations), for extended call forwarding to further wards. Use of RFID technology for identification at the touch terminal for access to patient data directly in the patient's room as well as documentation of care processes. Hereby efficient design of care tasks / activities as well as documentation for the respective patient to relieve the burden of routine work and support the daily care processes in a suitable way. Nursing services are documented immediately after provision: Recording of vital data, care activities, medication and other information requiring documentation, to reduce the number of incorrect records. Energy saving and optimized domotic control functions are provided by a local user interface.

Security features: Monitoring/synchronization of all data traffic as well as audio communication (conversations, announcements) to other rooms within the organizational unit, coordination of communication with the central units and other IP participants via IP interface (ETH-LAN, WIFI). The configuration data of a room is managed via the management server, made available through the use of standardized web services and stored locally. Support of the cyber security requirements of modern IT infrastructures. Upgradable to future system firmware thanks to future-oriented flash memory technology to ensure automated software updates during operation. Multi-stage security concept enables local call signalling in case of missing communication with the central unit of the system.

Activation of licensed system functions by separate software licenses required:

RFID funct., IP funct. (ETH-LAN/WIFI/BT) duty room funct. (zone concentrations, announcements, room/bed prioritisation), telephony (SIP client), care documentation (HIS interface required).

Part-No.:
79CM307

Features

  • High-quality, hardened mineral glass with a surface integrated into the surface-mounted plastic housing for each cleaning / disinfection of the device.
  • Equipped with antimicrobial compound for reduction of existing bacteria or preventing their reproduction.
  • Good mechanical properties with high resistance to daily stress (operation, cleaning, disinfection, jolts etc.).
  • Suitable for use in care facilities with high standards of hygiene, stability, longevity and durability (continuous operation).
  • Temporary switch-off of the touch display for cleaning mode to disinfect the surface / the housing
  • UV-resistant, impact-resistant
  • Heat-resistant, stability
  • Longevity, durability, Halogen-free
  • Flame protection (fire protection class V0)

System architecture:
  • Processor: Cortex A64 Quad-Core, 1.2GHz
  • Memory: 1GB DDR3, 8 GB Flash
  • Operating system: Linux
  • Cyber Security: Firewall, VNC (SSH), secured boot-loader function
  • VoIP/SIP: Digital, Codec G.711, P2P
  • Configuration: via web service
  • LAN: RJ45, 10/100Base-TX/IEEE 802.3
  • ETH for digital data/audio (WIFI opt.)

Control element (touch display):
  • Panel size: 17 cm, 16:9
  • Technology: TFT LCD, LED lighting
  • Resolution: 1024x600, 16.7 million colors
  • Touch technology: capacitive, multi
  • glass: hardened mineral glass/hardness 7 H
  • Cleaning mode for 10 s activatable

Loudspeaker/Acoustics:
  • Output power: 2W (normal), 2,5W (max.)
  • Frequency range: 380Hz-20kHz

Technical Data

Rated voltage
V AC
Rated voltage
Rated frequency
Nominal frequency
Hz
Rated current
A
Power supply

Operating voltage

Operating voltage
Operating voltage
24 V DC
Quiescent current
Quiescent current @ 24 V DC
Alarm current
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption
A
Output voltage
Output voltage
Output voltage
Output current
A
Output current
Power consumption
Power consumption
4 W
Power consumption
Power consumption standby
W
Battery capacity
battery capacity
Ah
Bridging time
Frequency range
Frequency
Contact load relay
Contact load
Sound level @ 12 V DC
dB(A)
Screen diagonal
cm
Display
Range
Connection terminal
Interface
Inputs
Outputs
Number of operations
Operation temperature
Application temperature
Ambient temperature
5 °C ... 40 °C
Storage temperature
-20 °C ... 70 °C
Air humidity
< 20 %
Mounting

Type of protection
Protection class
Protection low voltage
Housing
Material
mineral glass 7H (front)

PC + ABS-FR
Installation
Color
white, similar to RAL 9016 (front)

white (frame)
Weight
Weight

Cable
Bending radius
mm
Fire load
kJ/m
Cable length
m
Cable diameter
mm
Connecting cable
Connection
Rated cross-section
Version
CE certificate
Approval
Specification
Dimensions
W: 216 mm H: 144 mm D: 25 mm



Accessories

79CM307Z1 Systevo connection board for IP-Touch terminal, Databus

79CM307Z2 Systevo connection board for IP-Touch terminal, Databus / IP (ETH-LAN)

79CM307Z3 Systevo connection board for IP-Touch terminal, IP (ETH/PoE)

79CM307Z4 Systevo connection board for IP-Touch terminal, IP (ETH/PoE), Databus

Additional information

Operation either on fieldbus or IP infrastructure.

Installation in duty rooms by using corresponding licences.
